Product description:
Fused clear silica quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window.

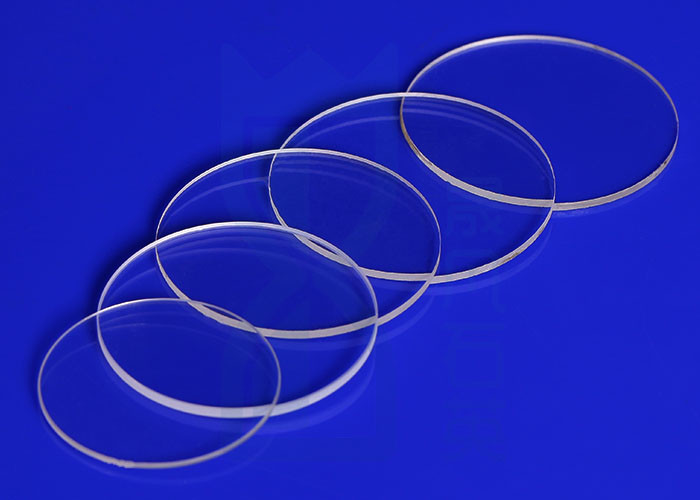

Quartz plate:
1. Translucence Quartz Glass thickness 0.3-30mm, OD: 1-500mm.
2. Thickness Tolerance: +/-0.1mm.
3. Raw Material: Quartz , SiO2:≥99.99%
4. Color : Clear , Translucence.
5. Surface quality :40/20 60/40
6. Transmittance >90%

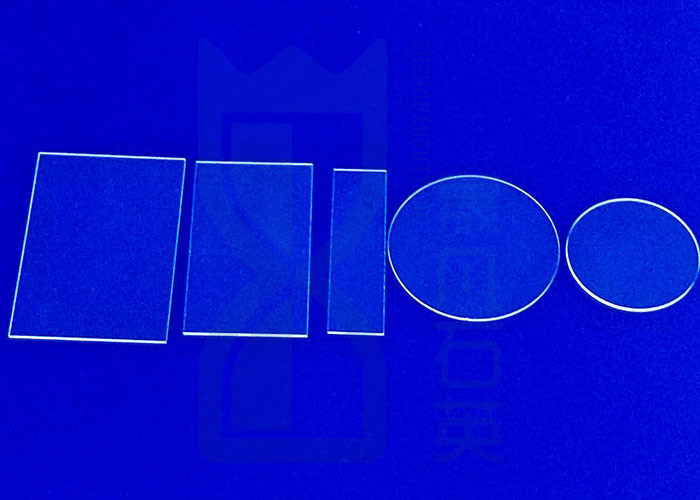

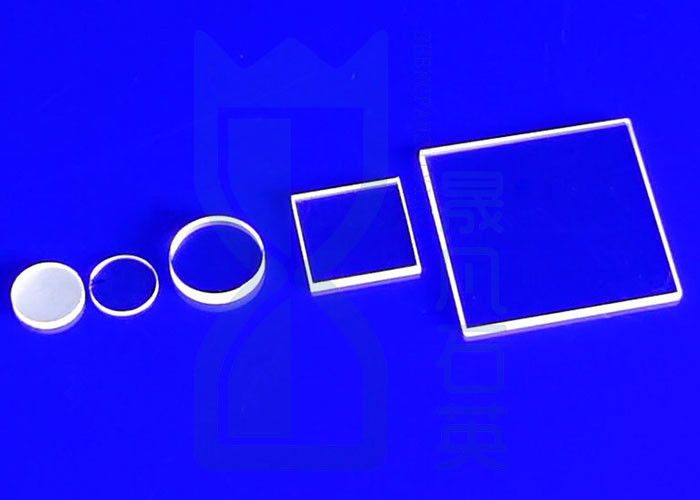

7. Sharpe: Square , Circle, Can make the size and shape according to customer's require.
Support customization:
Their size can designed according your need and can be grinded and polishing the sides according your need!
Application
The quartz glass plate is widely used in UVC/LED light,optical instrument,sight glass,observation window for furnace,semiconductor,photoelectron,military industry,metallurgy and test for lab.
Applied range:
This product is mainly used in electric light source, electrical appliances (electric), semiconductor, optical communications,
military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection and other fields.
| Place of Origin | Jiangsu,China |
| Brand | SF |
| Material | Glass,High quality Optical Glass |
| Usage | Optical |
| Structure | Double Convex |
| Shape | Spherical |
| Dimension Tolerance | +/-0.02mm |
| Processing Range | 1-1000mm |
| Shengfan Quartz plate characteristic |
| SIO2 | 99.9% |
| Density | 2.2(g/cm³) |
| Degree of hardness moh’ scale | 6.6 |
| Melting point | 1732℃ |
| Working temperature | 1100℃ |
| Max temperature can reach in a short time | 1450℃ |
| Visible light transmittance | Above 93% |
| UV spectral region transmittance | 80% |
| Annealing point | 1180℃ |
| Softening point | 1630℃ |
| Strain point | 1100℃ |
| | JGS1(ZS-1) | JGS2(ZS-2) | JGS3(HS) |
| Spectral characteristics | 180-2500nm | 200-2500nm | 260-3500nm |
| The average transmittance | 90% | 85% | 85% |
| Bubble class | 0 | 2 | 2 |
| Birefringence | 1-2 | 1-2 | 1-2 |
| Grain structure | 1 | 2 | 2 |
| Fringe | 1-2 | 2 | 2 |
| Uniformity | 1-2 | 2 | 2 |
| Fluorescence | 1 | 2 | 2 |
| Radiation Performance | Does not change clolor | Sight discoloration | Change color |

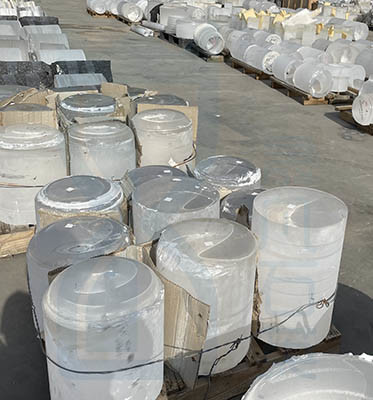

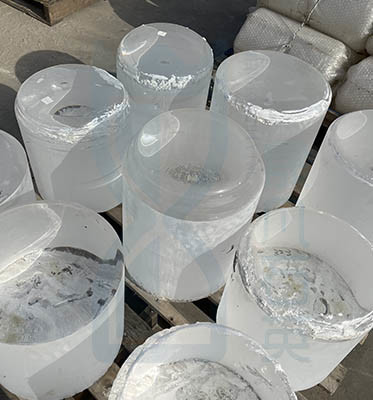

Raw material:
Company profile:
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation.Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million.With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
Our Services & Strength
The company adhere to the integrity of business, experience, reasonable price, quality assurance, to provide excellent after-sales service, we sincerely welcome customers to come to negotiate
